Earthing Material
Earthing Material : We provide wide range of earthing material like Pipe Type, Rod Type Earth electrodes, G.I. /M.S. / Copper type earthing strips, Earthing Spike , Test Link etc. We take care of all earthing parameters like electrical and thermal conductivity. Available in different sizes, these earthing materail are also supplied by us as per clients' requirements and specifications. Our range can be availed by our clients at market leading price.

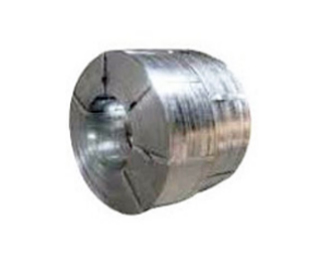

(1) Earthing Strips : We offer a wide variety of GI Earthing Strips that are well appreciated for features like high tensile strength, corrosion free and durable finishes. Our strips are in great demand due to their durability and high reliability.

Material Use : Mild Steel as per IS:2062 and Copper

Size : Standard Size from 25x3mm to 75x12mm in 5 to 6 Mtrs. In length Or as per Client`s Requirements.

Finishing : Hot Dip Galvanized, M.S. Strips & Copper Strips

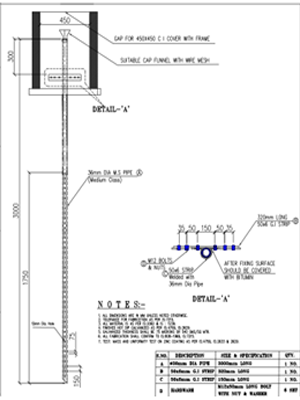

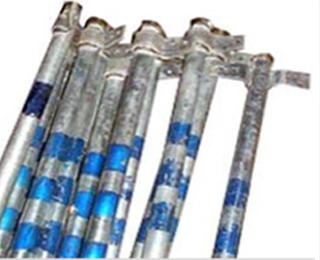

(2) Earthing Electrode (Pipe Type without or with C.I. Cover for Pit) : We manufacture G.I. / M.S. Pipe Type Earth Electrode with funnel as per indian standard. They are available with or without C.I. (cast iron) cover. Pipe Shall be perforated type for better thermal conductivity.

Material Use : MS Pipe as per IS: 1239, Class -B Copper Plate MS Flat as per IS:2062

Size : Standard Size – 20mm to 100mm dia. In 3000mm in length Or as per Client`s Requirements.

Finishing : Hot Dip Galvanized, M.S. Type with G.I. Test Link.

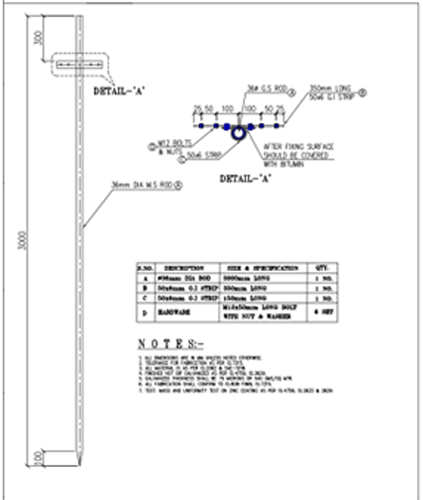

(3) Earthing Electrode (Rod Type without or with C.I. Cover for Pit) : We We manufacture G.I. / M.S. rod Type Earth Electrode with funnel as per indian standard. They are available with or without C.I. (cast iron) cover. Rod shall be 100mm taper in length for better results.

Material Use : MS Rod as per SAE: 1018 (RINL MAKE) Copper Plate MS Flat as per IS: 2062

Size : Standard Size – 20mm to 40mm dia. In 3000mm in length Or as per Client`s Requirements.

Finishing : Hot Dip Galvanized, M.S. Type with G.I. Test Link.

Other Types of Earthing Material

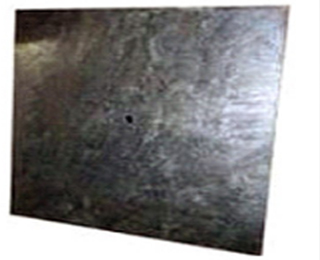

  • Earthing Plate

  • Earthing Pits

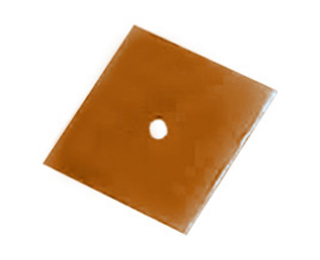

  • Copper Plates

  • G.I. Wires
